SRV-8X OPTIMUS ROV

SRV-8X OPTIMUS ROV

(Underwater Drone)

(Underwater Drone)

Double the Size & 2.5 times the Thrust of the SRV-8

Double the Size & 2.5 times the Thrust of the SRV-8

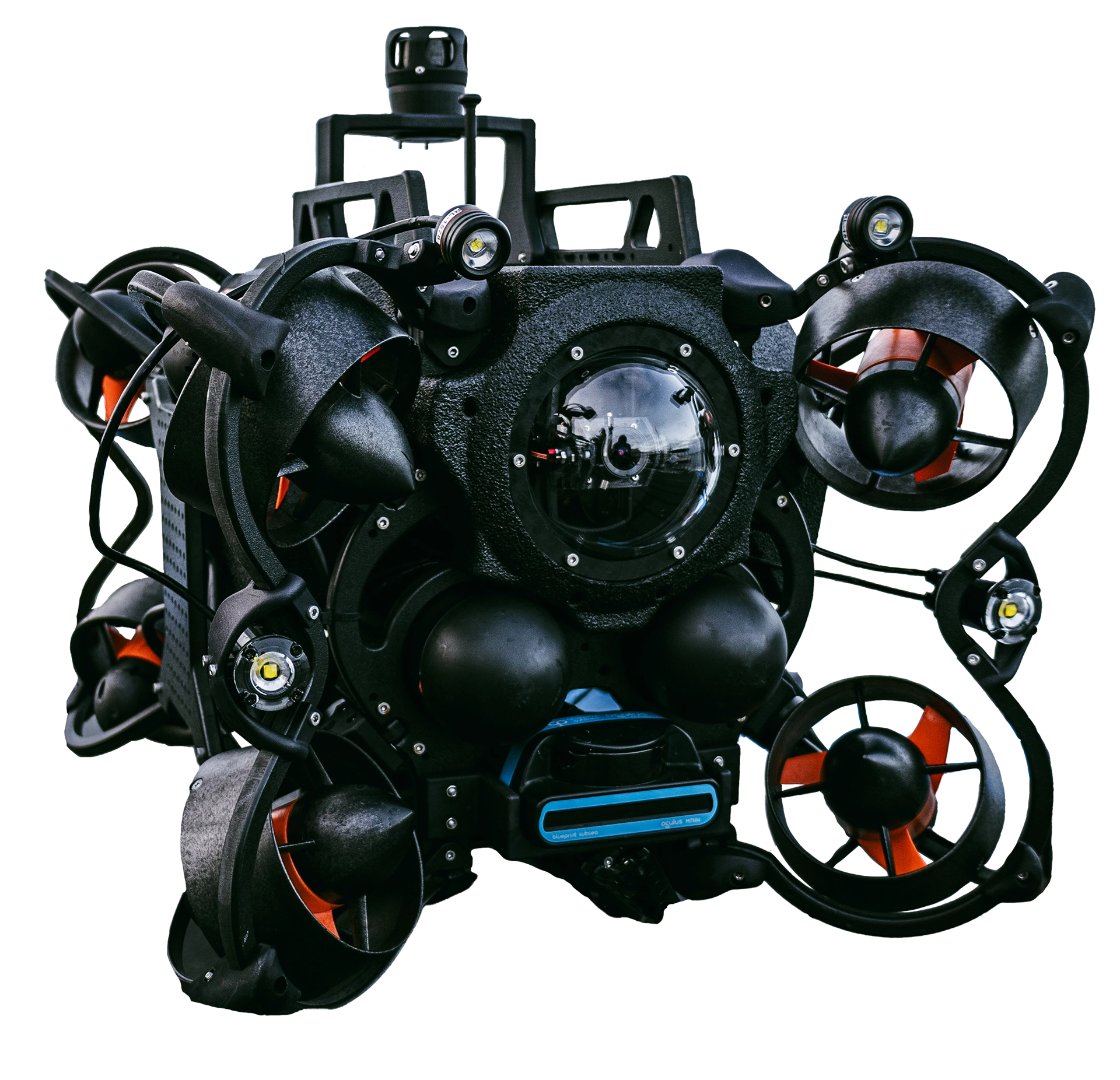

SRV-8X OPTIMUS ROV: Increased Capabilities

The SRV-8X Optimus Rov was developed to push the limits required for Offshore and more challenging deployments where larger payload capabilities and more sensors are required for more demanding and deeper missions. The stronger thrusters provide for operating in higher currents with quicker responsiveness.

SRV-8X Optimus ROV: Going Further and Deeper

An optional fiber optic tether and provides for operating at depths up to 500 meters and distances of up to several kilometers. It also provides a data bandwidth in excess of 1 GB/sec.

You can add a wide variety of sensors and robotic arms as a field upgradeable “plug-n-play” installation/solution. Our Subnav software is preconfigured to recognize approved devices and work out of the box.

SRV-8X Optimus ROV: Enhanced Features

Larger thrusters and more powerful design of the Optimus-8 ROV increases payload limitations and ability to work in stronger currents at deeper depths.

SRV-8X Optimus ROV: Enhanced Features

Larger thrusters and more powerful design of the Optimus-8 ROV increases payload limitations and ability to work in stronger currents at deeper depths.

Compare Features Of The SRV-8 vs SRV-8X OPTIMUS ROV

SRV-8 SRV-8X OPTIMUS ROV SRV-8X OPTIMUS ROV BENEFITS
Length-50cm (19.5”) Width-43cm (17”) Height-33cm (13”) Weight-18.6kg(41lbs) Length-64cm (25”) Width-51cm (20”) Height-43cm (17”) Weight-30kg(65lbs) Allows for greater stability at greater depths and in stronger currents
SRV-8 SRV-8X OPTIMUS ROV SRV-8X OPTIMUS ROV BENEFITS
8 bushless DC thrusters 8 large bushless DC thrusters
2.5X Thrust
SRV-8 SRV-8X OPTIMUS ROV SRV-8X OPTIMUS ROV BENEFITS
305 meter (1000ft)
500 meter (1640ft)
Works at greater depths and higher currents
SRV-8 SRV-8X OPTIMUS ROV SRV-8X OPTIMUS ROV BENEFITS
2 Standard, 135 degree beam angle, 3000 Lumens Total 4ea Blueprint Subsea Lights (6000 Lumen Total)
See more with added lighting
SRV-8 SRV-8X OPTIMUS ROV SRV-8X OPTIMUS ROV BENEFITS
2EA Ethernt Devices 2EA Serial Devices
4EA Ethernet Devices 2EA Serial Devices Fiber optic option available
Almost twice the connectivity of the SRV-8 Connect additional sensors or devices
SRV-8 SRV-8X OPTIMUS ROV SRV-8X OPTIMUS ROV BENEFITS
100M (328FT), 4.5mm Diameter. Tether Provided (Up to 400M Option)
250m (820ft) tether provided,4.5mm diameter, Fiber Optic Option available
The SRV-8X OPTIMUS has a fiber optic tether option for lengths greater than 300m
SRV-8 SRV-8X OPTIMUS ROV SRV-8X OPTIMUS ROV BENEFITS
Best in Class SubNav™ software seamlessly integrates accessories for an easy to use & all-in-one experience
Best in Class SubNav-X™ software seamlessly integrates accessories for an easy to use & all-in-one experience
Same intuitive software optimized for the larger vehicle and sensor connectivity

SRV-8X OPTIMUS ROV Is Available In Multiple Factory Configurations

All configurations are field upgradable with any of our integrated add-on technologies.

Top-Side Options

Digital Surface Station

SRV-8X Optimus ROV Digital Surface Station – Includes Digital Interface Module, Rugged Laptop with Sunlight Readable Screen, Xbox Controller, and Subnav Software.

X-Box Controller

The Xbox Controller comes standard with the SRV-8X Optimus ROV . Easy to Learn, Simple to Pilot.

Flight Stick

Flight Stick Assembly for One handed Control of the SRV-8X Optimus ROV Includes the Flight Stick with Base and Software to Integrate with the ROV.

SRV-8X OPTIMUS ROV Software

SUB-NAV

The SubNav™ software enables logging of all available data for post mission analysis and playback, vehicle dynamics, and position information for improved situational awareness both during and after the mission with logged data synchronized to the HD video timeline.

We Are Here To Answer Your Questions.

With a quick and easy set-up, near-instant operating familiarity and impeccable underwater visibility, the RJE Oceanbotics™ SRV-8 ROV is the most reliable and affordable remote operating vehicle (ROV) on the market. The topside control console with standard Xbox controller provides intuitive operation for any marine professional.
